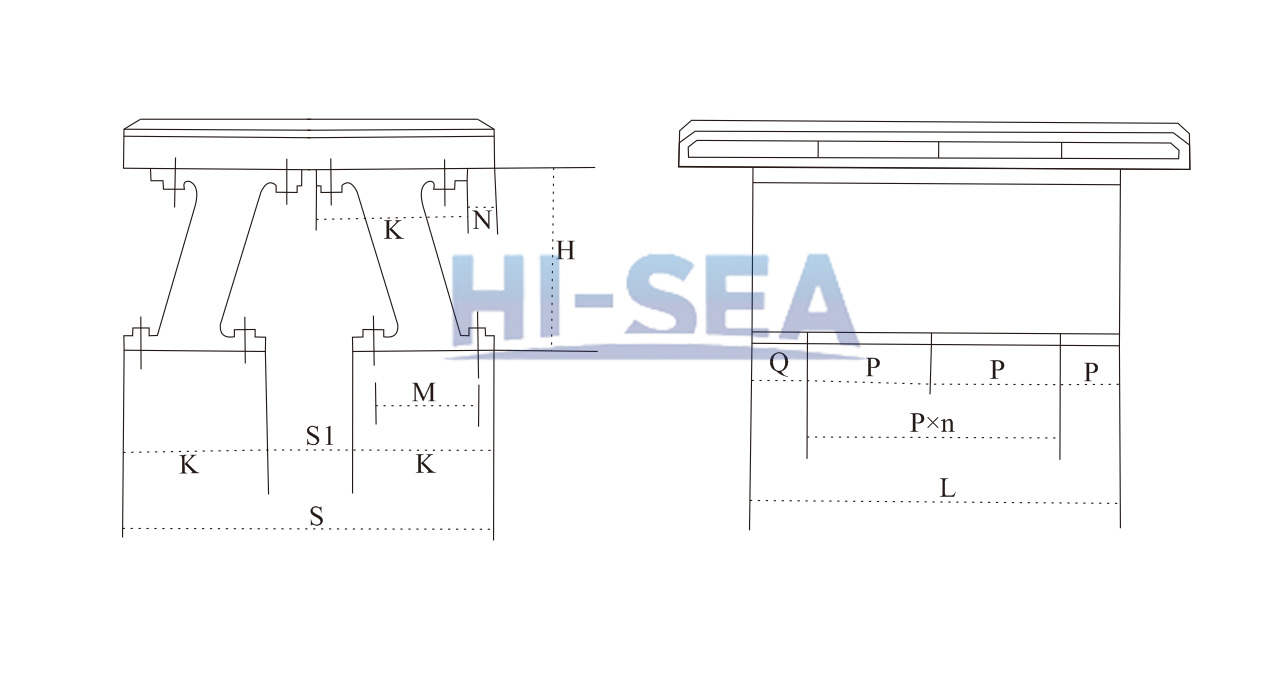

Pi Type Rubber Fender Drawing and Dimensions:
|
Model
|
H |
K |
M |
N |
S |
S1 |
| Π 600 |
600 |
500 |
370 |
65 |
1500 |
500 |
| Π 800 |
800 |
600 |
460 |
70 |
1700 |
500 |
| Π 1000 |
1000 |
700 |
550 |
75 |
2000 |
600 |
| Π 1250 |
1250 |
800 |
650 |
75 |
2450 |
850 |
| Π 1400 |
1400 |
900 |
730 |
85 |
2700 |
900 |
| Π 1700 |
1700 |
1050 |
860 |
95 |
3150 |
1050 |
| Π 2000 |
2000 |
1200 |
1000 |
100 |
3700 |
1300 |
| Π 2250 |
2250 |
1350 |
1150 |
100 |
4000 |
1300 |
| Π 2500 |
2500 |
1400 |
1200 |
100 |
4400 |
1600 |
| NOTE: (units:mm) |
| Model
|
L=1000 |
L=1500 |
L=2000 |
L=2500 |
| P |
n |
Q |
P |
n |
Q |
P |
n |
Q |
P |
n |
Q |
| Π 600~Π 2000 |
700 |
1 |
150 |
600 |
2 |
150 |
850 |
2 |
150 |
700 |
3 |
200 |
| Π 2250 |
600 |
1 |
200 |
550 |
2 |
200 |
800 |
2 |
200 |
700 |
3 |
200 |
| Π 2500 |
600 |
1 |
200 |
550 |
2 |
200 |
800 |
2 |
200 |
|
|
|
| NOTE: (units:mm) |
The drawing and dimensions are for reference. Other specifications are also available. Please contact us for detailed information.
The Performance List of Pi Type Rubber Fender:
| Model
|
Rated Deflection(%)
|
Performance |
| R(KN) |
Tolerance(%) |
E(KN/M) |
Tolerance(%) |
| Π 600 |
50
|
388.1 |
±10
|
89.2 |
±10
|
| Π 800 |
517.4 |
157.8 |
| Π 1000 |
646.8 |
268.5 |
| Π 1250 |
808.5 |
419.4 |
| Π 1400 |
905.5 |
525.3 |
| Π 1700 |
1099.2 |
775.2 |
| Π 2000 |
1293.6 |
1072.1 |
| Π 2250 |
1455.3 |
1357.3 |
| Π 2500 |
1617.0 |
1676.8 |
| NOTE: REACTION FORCE(R) ENERGY ABSORPTION(E) |
Installation of Pi Type Rubber Fenders:
Pi Type Rubber Fenders in Factory:

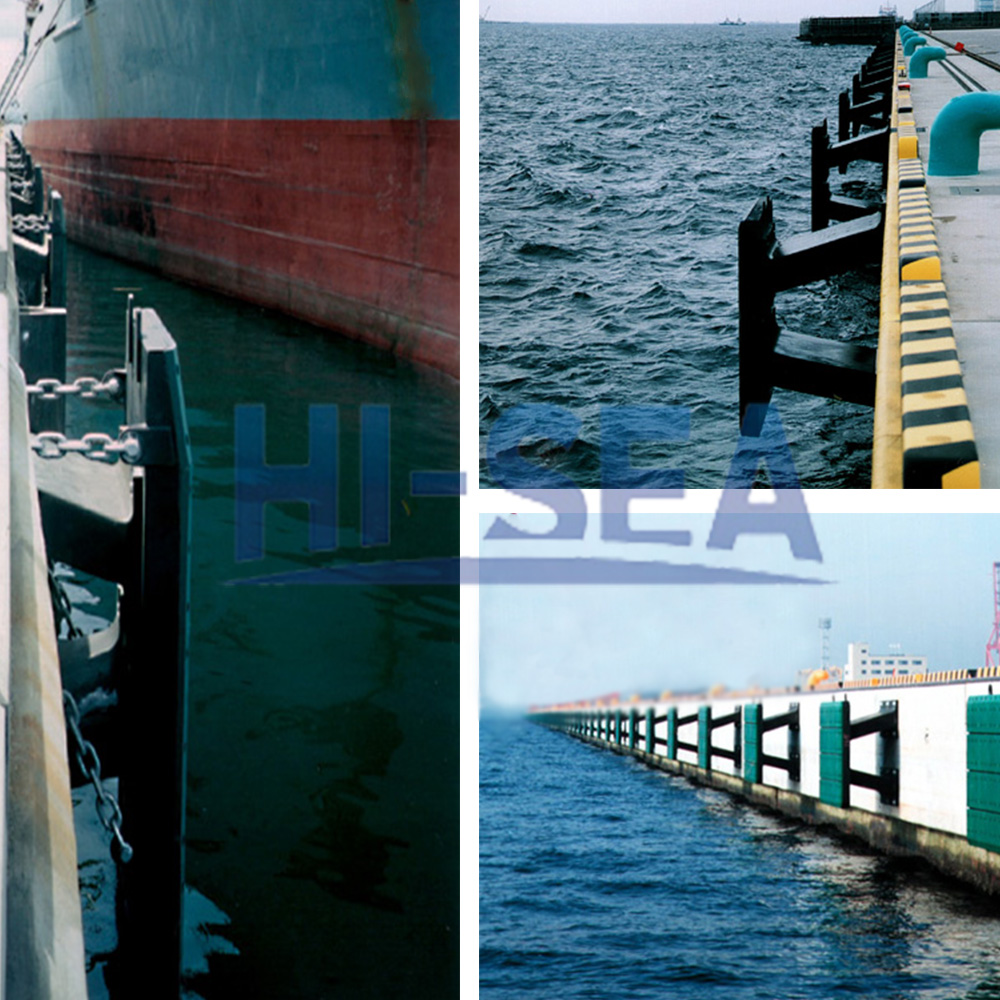

Application of Pi Type Rubber Fenders:
Introduction:
Pi type rubber fender is single piece moulding. This fender usually equipped with frontal frame, consisting of face panel and front panel. Frequently used Face panel is made of UHMW-PE material, featured with high wear resistance and low friction. The structure of this fender is simple but efficient. Therefore, it’s easy to install but more protective for docks and vessels.
Accessories and Fixings:
- Chain
- U anchor
- Anchor bolt
- Bolt
- Face panel
- Front panel
